Al Rughaylat Port — Phases 1, 2 and 3 (Packages A, B, C and D)

Marine and landside infrastructure at Al Rughaylat Port in Fujairah, spanning breakwaters, dredging, a precast-block quay wall, a Ro-Ro ramp and harbour facilities.

Project details

Ongoing

Project reference: 034 · 041
Location: Al Rughaylat Port, Fujairah, on the east coast of the UAE
Client: Port of Fujairah
Work packages: A, B, C and D
Designer of the project: MUC Engineering
MAR executing company: MAR Marine & Building Contracting LLC
Consultant: MUC Engineering
Client representative: Not provided
Contract type: Not provided
Project period: 2024–present
Project award: 4 December 2024
Commencement: 4 December 2024
Expected completion: Not provided
Completion: Ongoing
Planned operations: Not provided
MAR project role: Not provided
Main contractor: Not provided
Subcontractor: Not provided

Project overview

The project

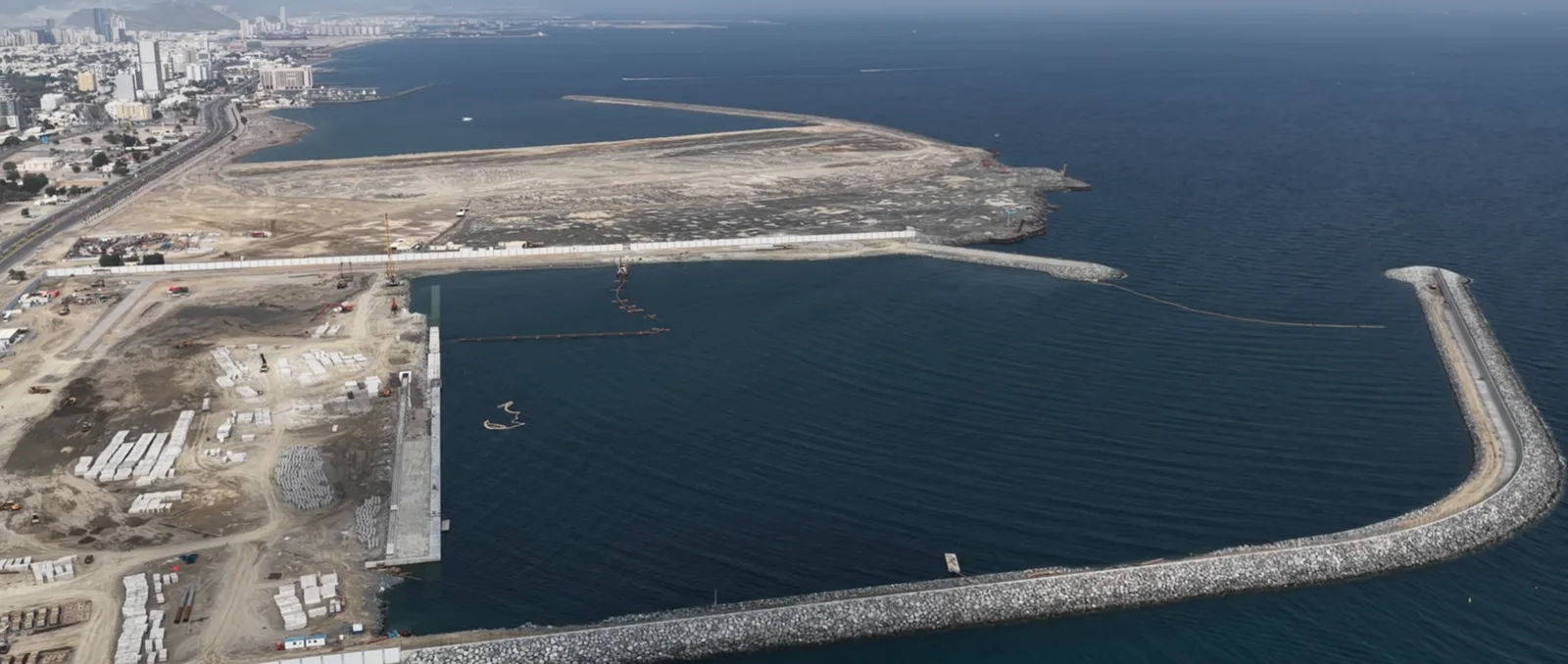

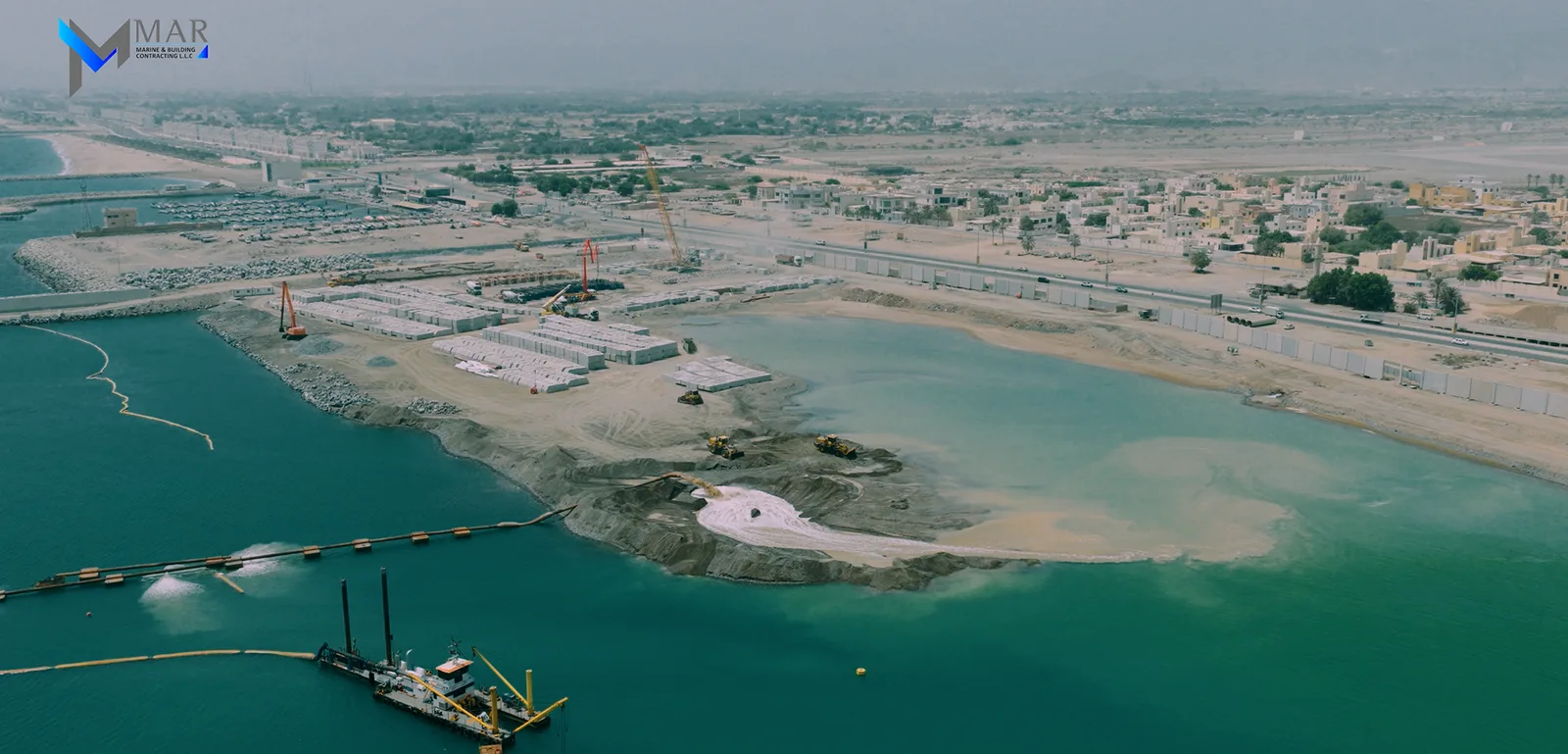

Al Rughaylat Port development across Phases 1, 2 and 3, encompassing Packages A, B, C and D in Fujairah, on the east coast of the United Arab Emirates. The supplied project brief describes Package A for breakwaters and revetments, Package B for dredging, and Package C for the quay wall, Ro-Ro ramp, roadworks and dhow inspection jetty. The works also include crown walls, interlock paving, precast kerbs, perimeter fencing, marine furniture and aids to navigation.

Delivery

Scope of work

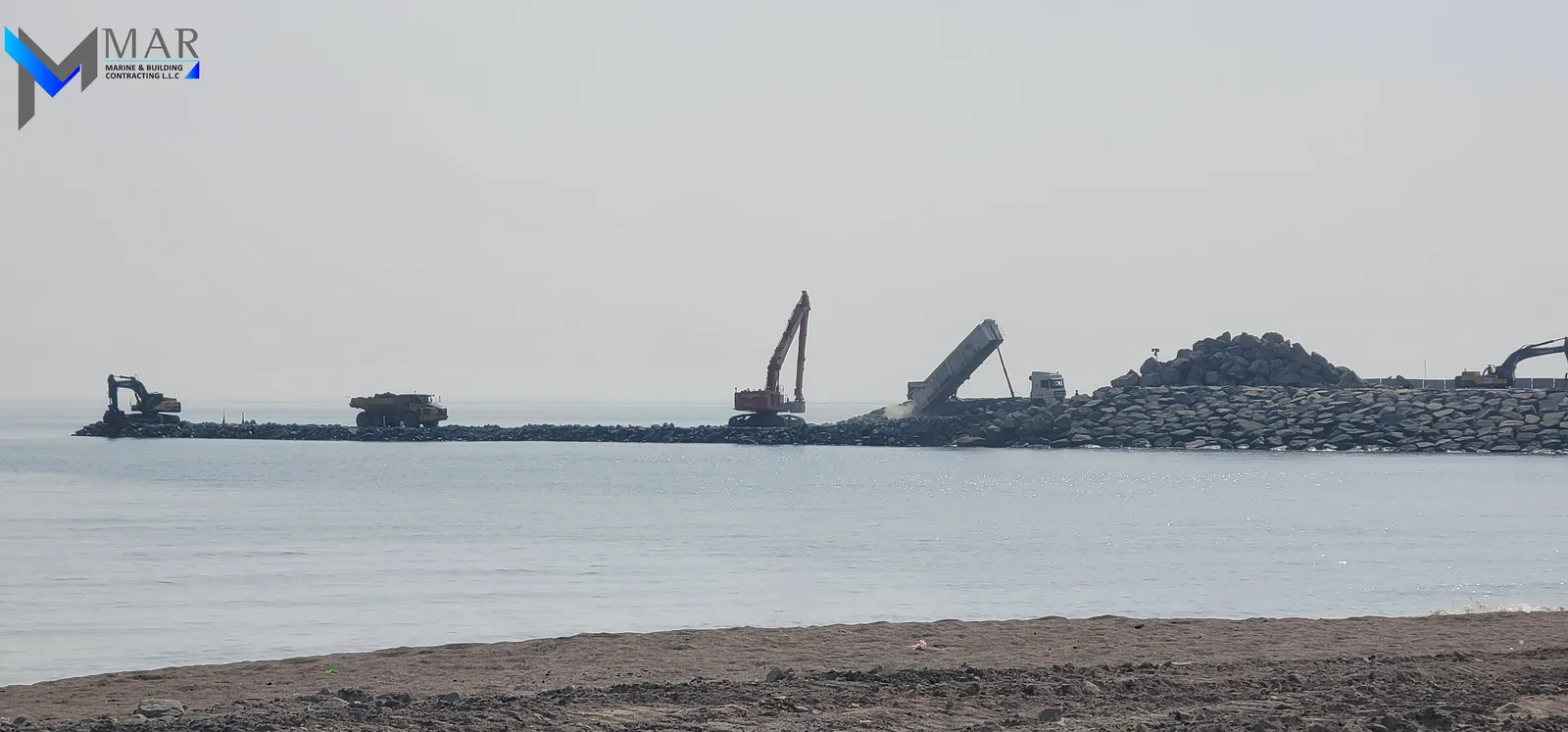

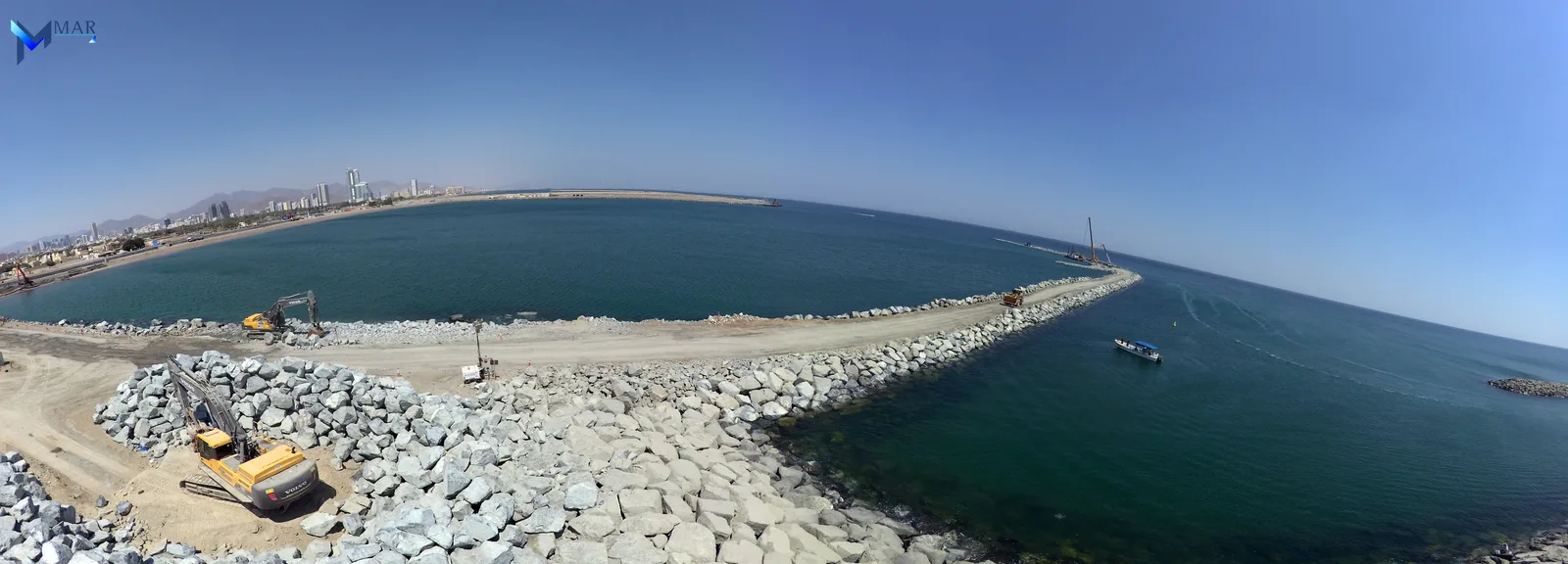

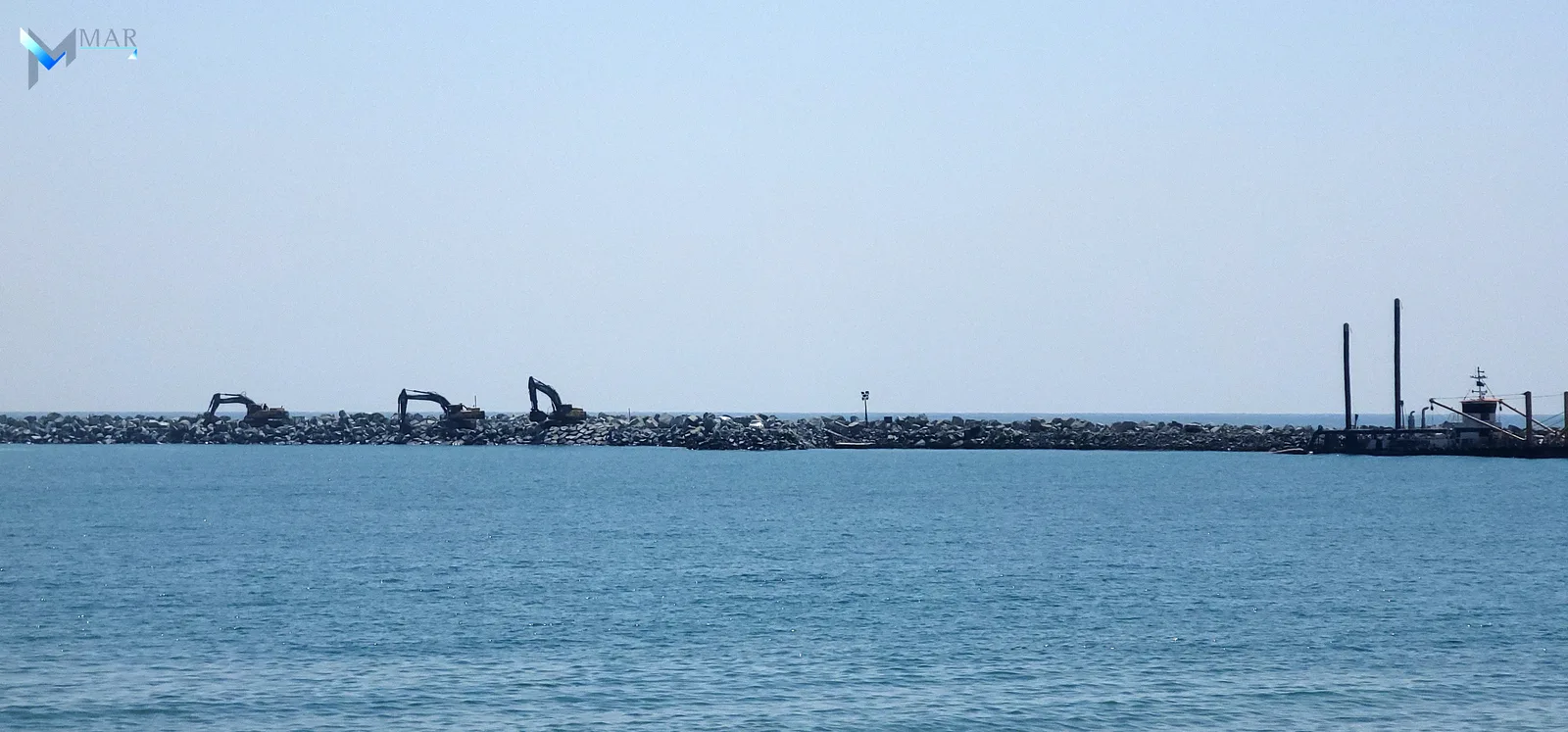

Package A: construction of the 910 m southern breakwater, 155 m northern breakwater and associated revetments

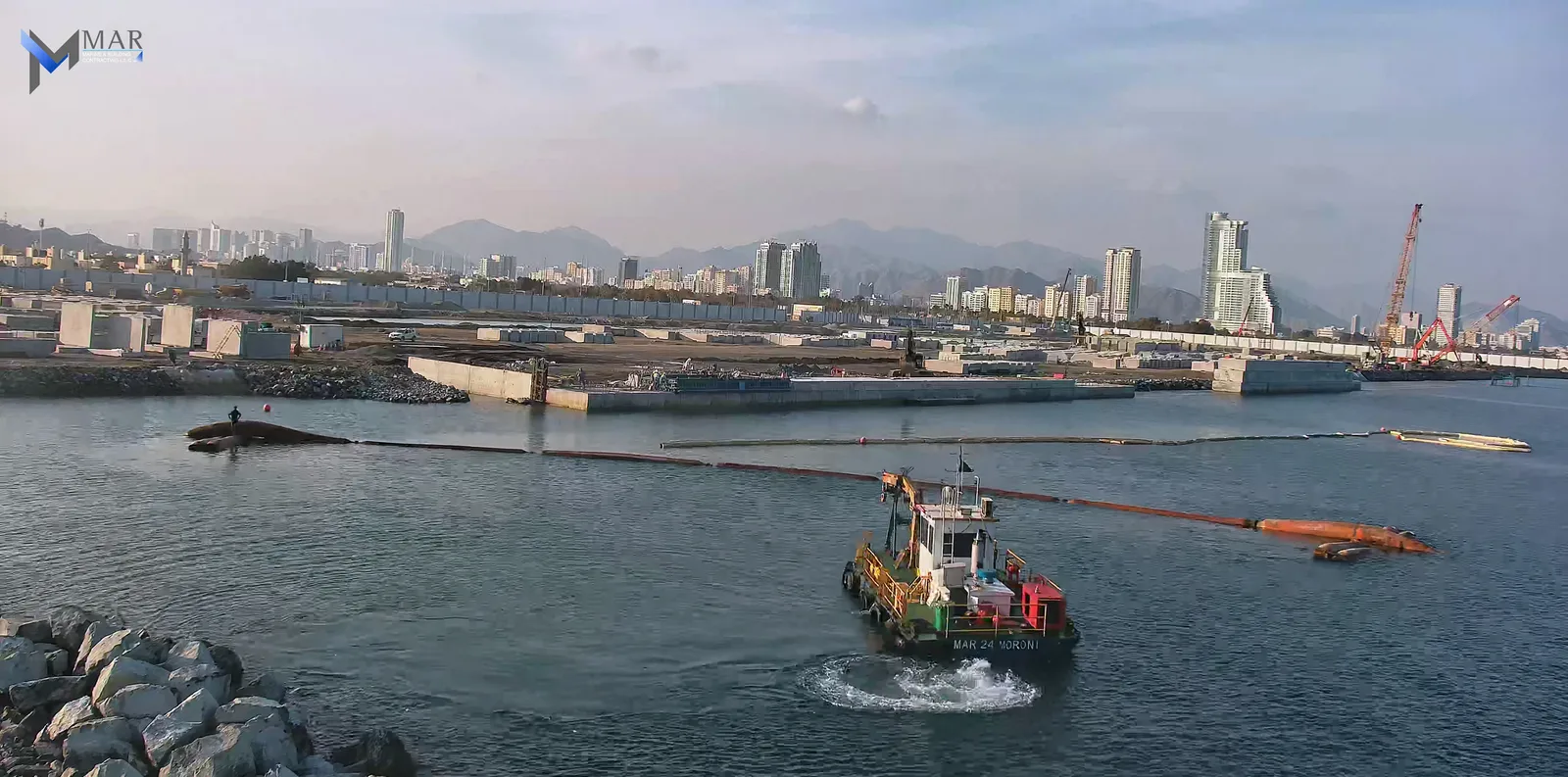

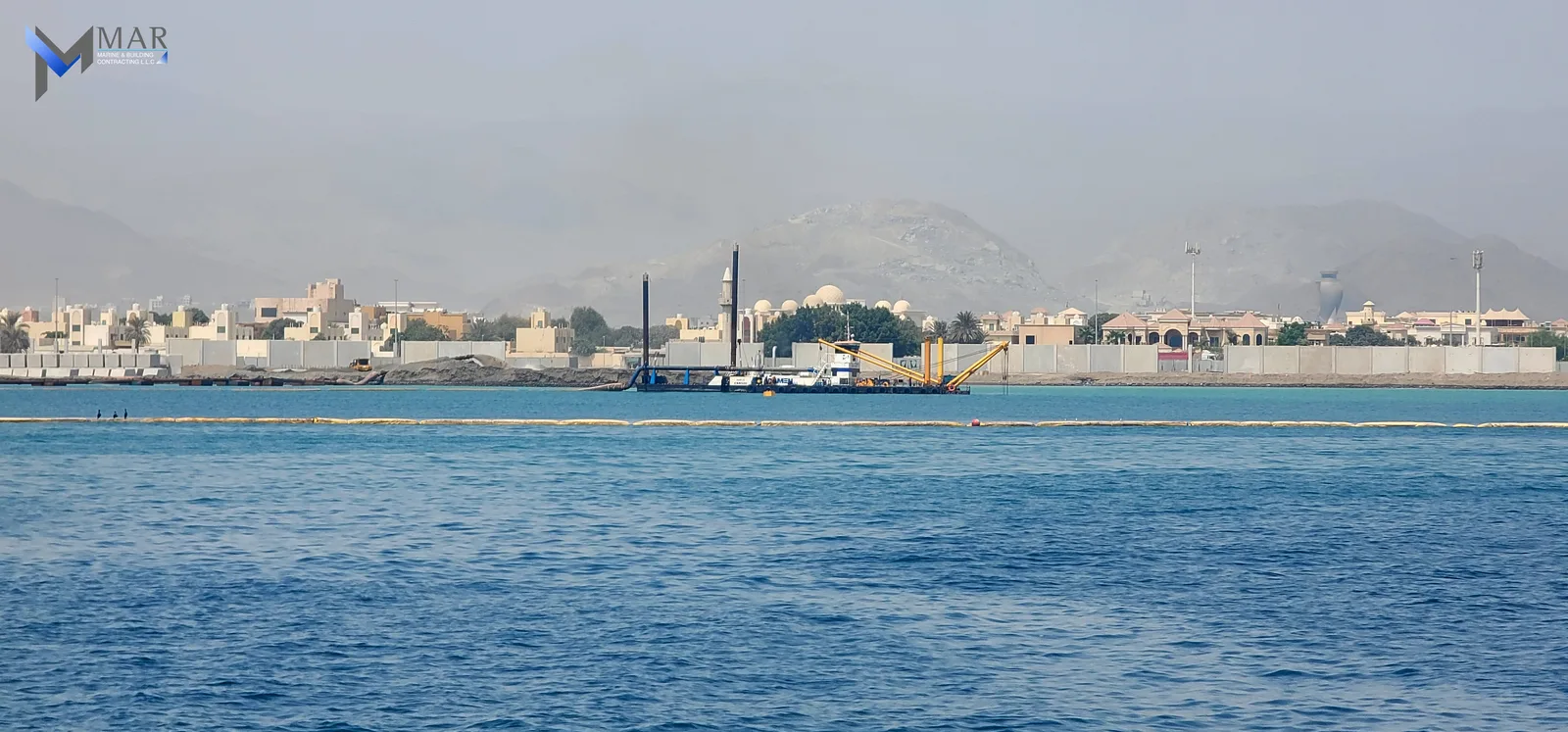

Package B: 839,289 m³ of dredging to the design level of -7.00 m FHD

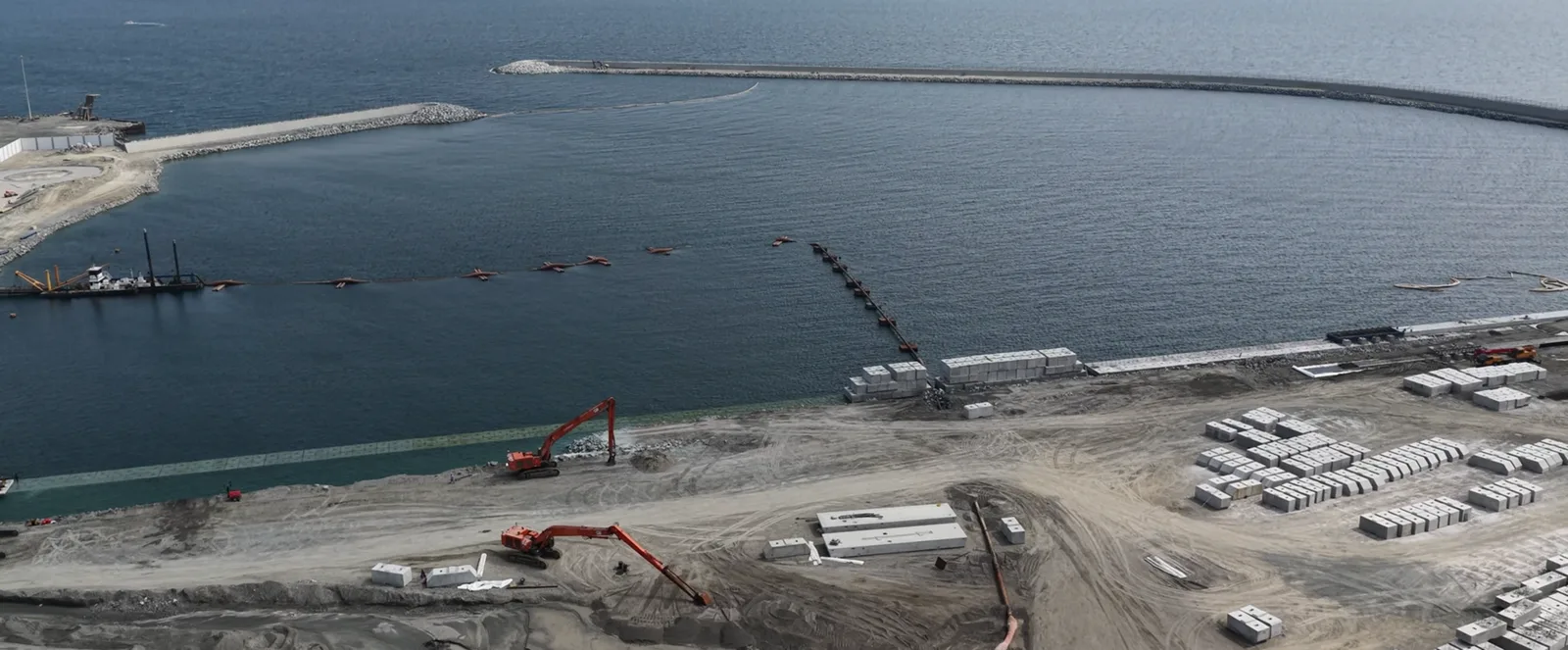

Package C: construction of the 856 m precast-block quay wall, a 16 × 48 m Ro-Ro ramp, roadworks and dhow inspection jetty

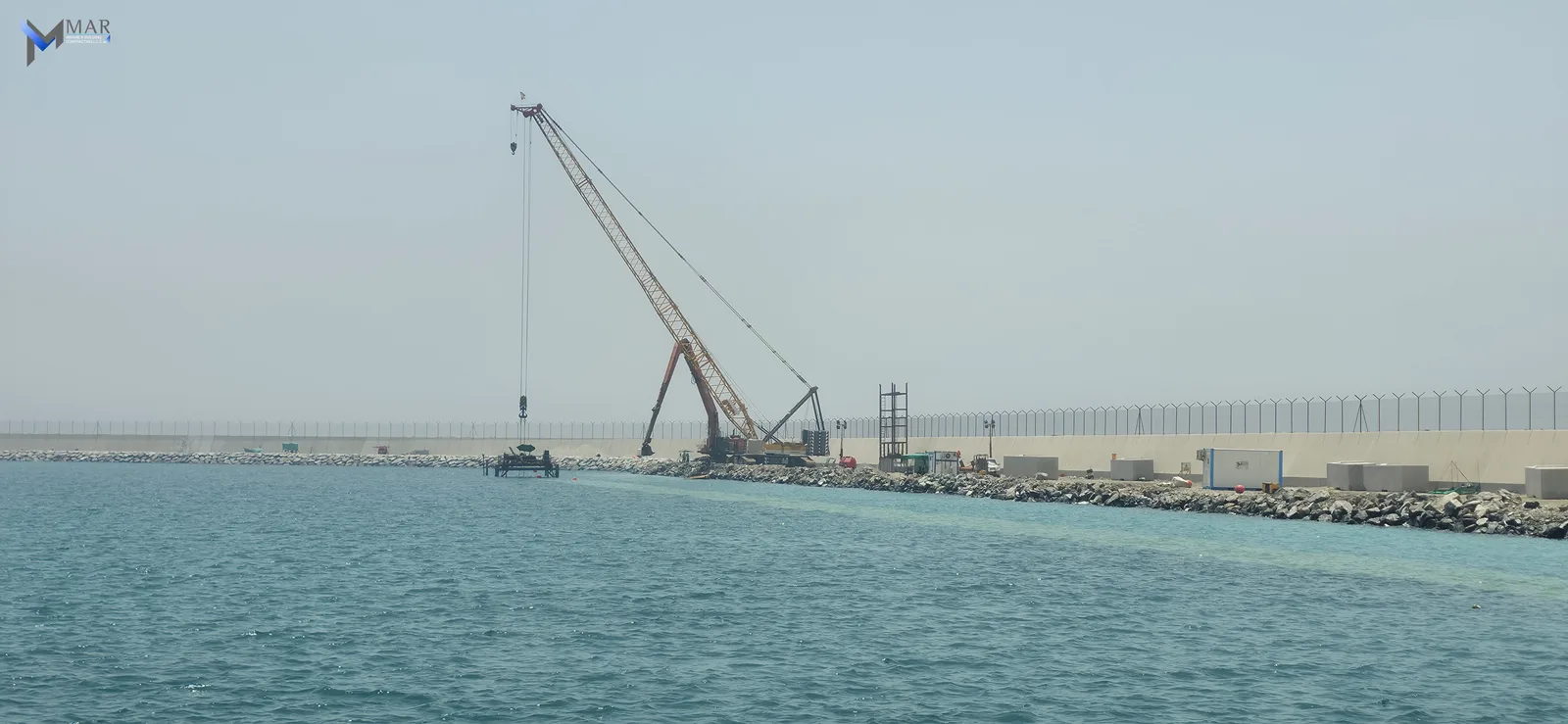

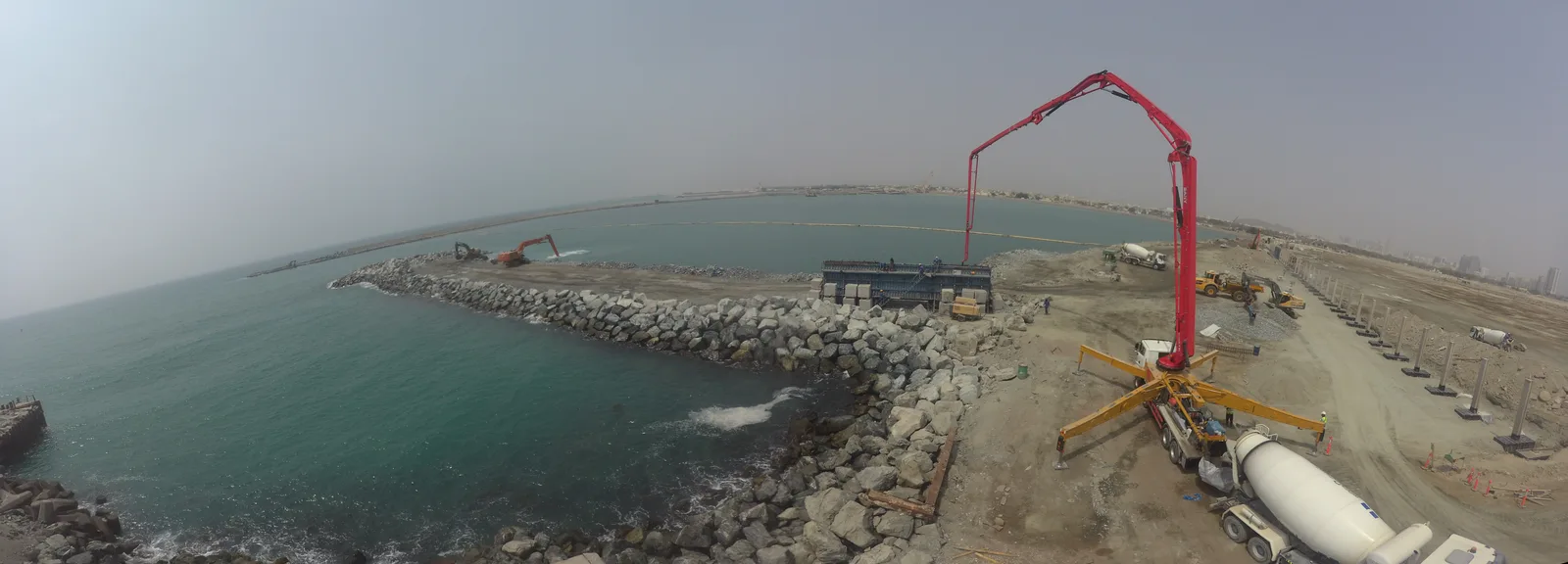

Construction of 1,150 m of crown walls at the breakwaters
85,787 m² of interlock pavement, 12,000 m of precast kerbs and 2,240 m of chain-link fencing
Dhow inspection jetty and pontoon, including an aluminium gangway
Installation of 213 AN-fenders and 48 bollards rated at 25 tonnes
Installation of two land bollards rated at 30 tonnes and eight land bollards rated at 50 tonnes
Installation of 24 ladders and 48 mooring rings
Installation of eight aids to navigation
